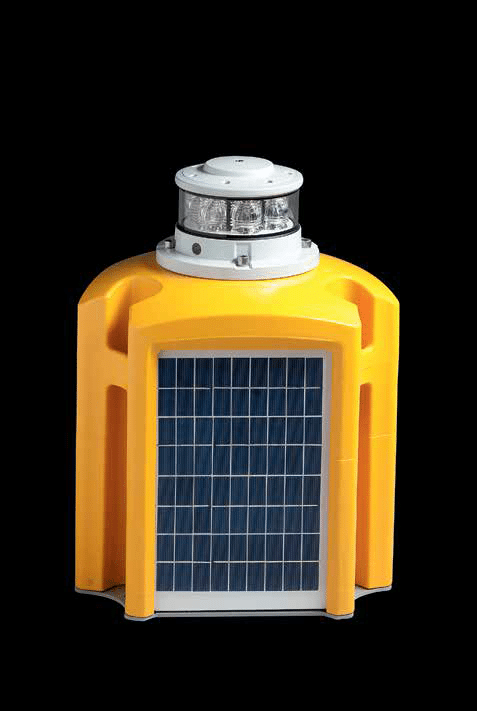

Sabik SC 160I

Self Powered LED lantern

Download DataSheet

Self Powered LED lantern for buoys and minor beacons with up to 8 NM Range

SC 160 I is a self-contained medium range LED lantern with best-in-class optical performance  for fixed and floating structures. The lantern includes solar panels, battery and charge controller and is designed for harsh marine environments. Great long uninterrupted operation.

Features

  • Range up to 8 NM (Tc=0,74), 11 NM (Tc=0,85) depending on geographical location
  • Standard IALA colours Red, Green, White, Yellow
  • Lantern made of rugged injection moulded aluminium housing and UV resistant polyethylene body
  • Integrated flasher with day-light switch and solar charger
  • Standard VRLA battery and ventilated battery compartment
  • Solar modules covered with tempered glass
  • Adjustable intensity and range
  • Available with narrow (5°) or wide (10°) vertical divergence
  • Programmable with Bluetooth® Control mobile app up to 50 m radius
  • Other wireless programming options available such as Sabik Easy Programmer or
    PC/USB interface
  • Integrated event log for 365 days
  • Optionally integrated GPS synchronization
