Carmanah M660

Self-Contained Lantern

Download DataSheet

Self-contained LED lantern for buoys and minor beacons, up to 2 NM Range

The M660 is a high-performance, long life, easy-to-use and cost effective self-contained solar LED marine lantern. The M660 features a Li-ion battery pack that extends the service life of the lantern up to eight years. M660 has four different mounting options and can be programmed and controlled with Bluetooth® Control.

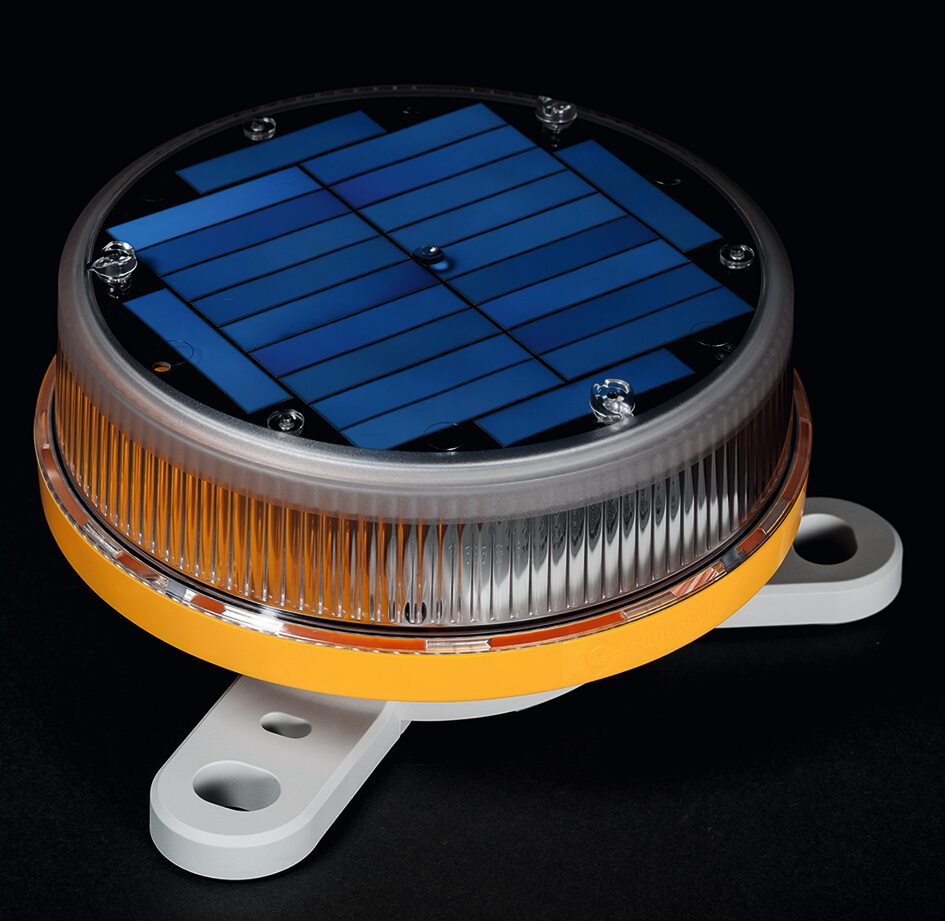

carmanah m660 navigation light

Features

  • 2NM range
  • Standard IALA colours Red, Green, White, Yellow, Blue
  • Ventilated battery compartment
  • Adjustable intensity and range
  • Vertical divergence > 8º (FWHM)
  • High-efficiency solar cells.Maximum Power Point Tracking (MPPT) for optimal energy collection
  • Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material
  • IP 68 rated. O-ring sealing with waterproof vent. Battery case is also IP68 (duration under test)
  • Li-ion battery, optional dual pack
  • Programmable with Bluetooth® Control and IR-Programmer
  • Optional ON/OFF switch, external charger and charging port
