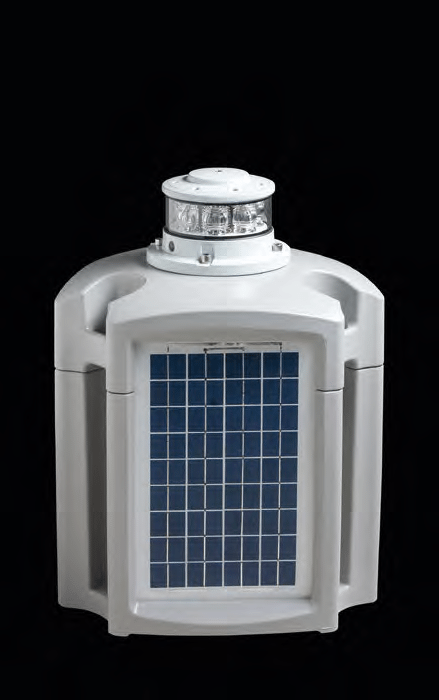

Sabik SC 160II

Self-contained LED Lantern

Download DataSheet

Self-Contained LED Lantern for buoys and minor beacons

SC 160II is a self-contained LED lantern with best in class optical performance for fixed and floating structures with a range of up to 10 NM. The lantern includes solar panels, battery and charge controller and is designed for harsh marine environments. Great for long uninterrupted operation.

Features

  • Range up to 10 NM (Tc=0,74), 14 NM (Tc=0,85) depending on geographical location
  • Standard IALA colours Red, Green, White, Yellow
  • Lantern made of rugged injection moulded aluminium housing and body of UV resistant polyethylene
  • Integrated flasher with day-light switch and solar charger
  • Standard VRLA battery and ventilated battery compartment
  • Adjustable intensity and range
  • Available with narrow (5°) or wide (10°) vertical divergence
  • Programmable with Bluetooth® Control mobile app up to 50 m radius
  • Other wireless programming options available such as Sabik Easy Programmer or
    PC/USB interface
  • Integrated event log for 365 days
  • Optionally integrated GPS synchronization and GSM Remote monitoring
