Sabik LED 160

LED Lantern

Download DataSheet

Full range lantern for fixed and floating installations

This all-round LED 160 lantern has world-class optical performance with options for buoys and fixed installations. Three different lantern options are available, covering a range from 3 NM up to 12NM (Tc = 0,74).

This lantern has a newly designed rugged injection moulded aluminium housing as well as easy field installation due to the integrated junction box, which has 3 cable entries. Extremely low power consumption means that this lantern is also suitable for solar and battery operation. With two different options, the LED 160 is available in Narrow 5° and Wide 10° vertical divergence, as well as the LED 160H with a 2,5° vertical divergence.

carmanah led160

Features

  • Standard IALA colours Red, Green, White, Yellow and Blue
  • Best in class optical performance

  • New designed rugged injection moulded aluminium housing

  • Field installation easy thanks to the integrated junction box with 3 cable entries

  • Extremely low power consumption, suitable for solar and battery operation

  • Integrated 16A solar panel charger

  • Adjustable intensity and range

  • The lantern is available in two Narrow 5° and with Wide 10° vertical divergence, and the LED 160H with a 2,5° vertical divergence.

  • Programmable with Sabik standard IR programming devices

  • Optionally integrated GPS synchronization

  • Optionally integrated GSM/GPS remote monitoring

  • Can be programmed and controlled up to 50 meters distance with Bluetooth® Control

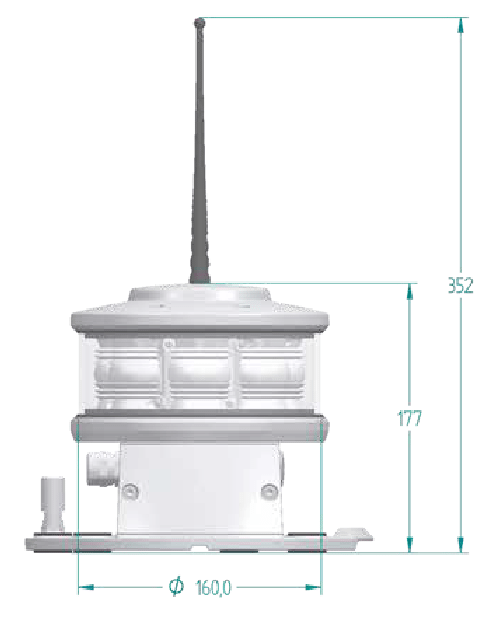

LED160 drawing LED160 drawing
